Fire-Protection Designed for Safety and Aesthetics
PYRAN® Platinum is a Fire-Rated Glass-Ceramic designed and UL-certified to protect building occupants from the spread of fire, smoke and hot gases for a set amount of time, enhancing safety while maintaining code compliance. Distinguished by its smooth, virtually colorless appearance, PYRAN® Platinum is also available in film and laminated versions for safety glazing applications.

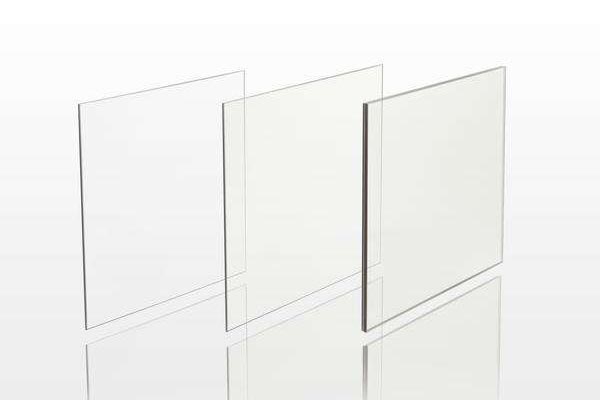

PYRAN® Platinum
Features
- 3/16″ (5mm) thick
- Weighs 2.6 lbs. psf
- Clearest glass-ceramic on today’s market
- Float glass quality surface
- Manufactured without hazardous elements antimony and arsenic
- Fire-rating not affected by light sandblasting or surface-applied opacity film
- Can be used monolithically, or in the construction of insulated glass units
Resources
Applications
Non-impact

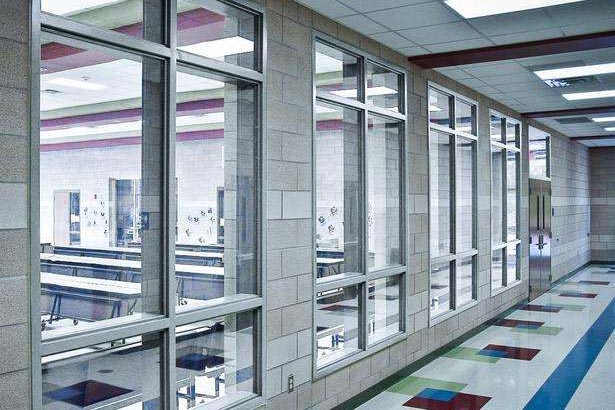

Non-safety rated locations (transoms and windows)
PYRAN® Platinum L
PYRAN® Platinum L is laminated to meet the safety glazing requirements for hazardous locations and supports fire protection for up to 90 minutes in windows and up to 3 hours in doors.
Features
- 3/8″ (10 mm) thick
- Weighs 4.3 lbs. psf
- Clearest glass-ceramic on today’s market
- Clear and wireless
- Attains positive pressure test standard UL 10C
- Impact rating: ANSI Z97.1 (Class A) and CPSC 16CFR1201 (Cat. I and II)
- Manufactured without hazardous elements antimony and arsenic
- Fire-rating not affected by light sandblasting or surface-applied opacity film
- Can be used monolithically, or in the construction of insulated glass units
Resources
Applications

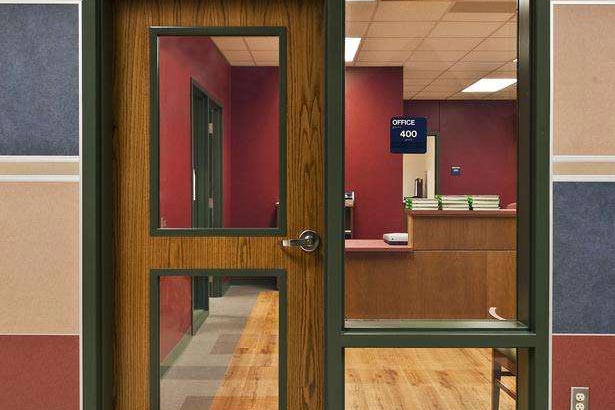

Doors
Windows
Other hazardous locations

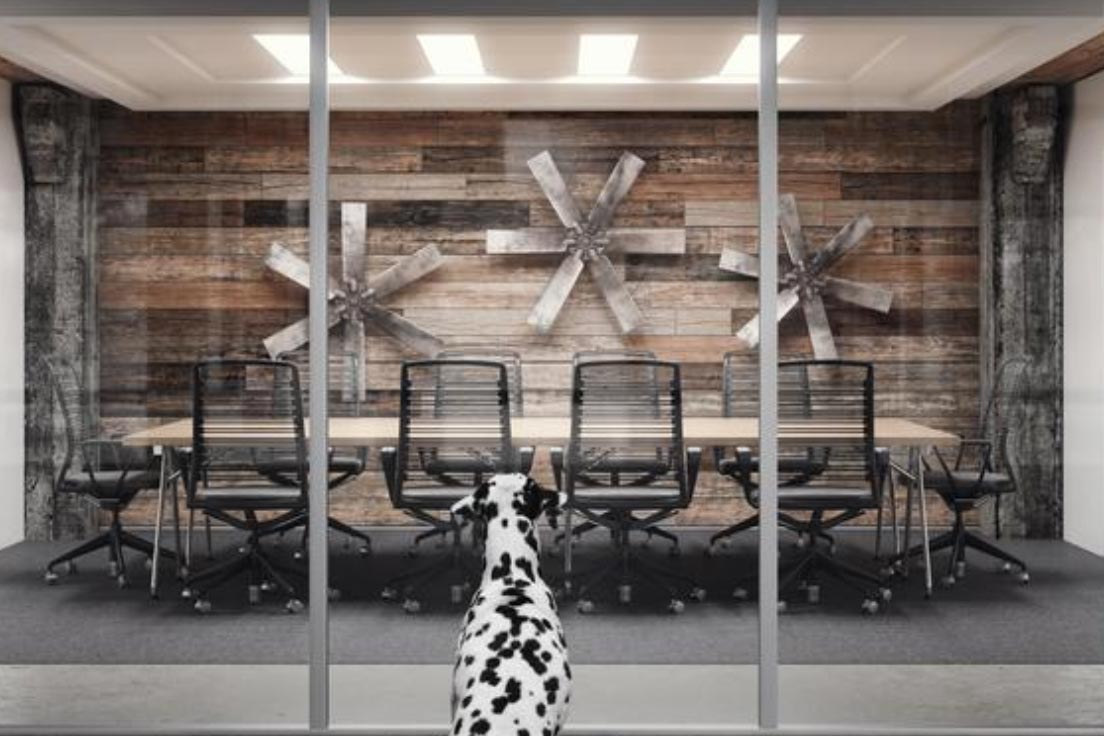

PYRAN® Platinum F
Contains the same thickness as PYRAN® Platinum, but with a surface-applied safety film that provides impact resistance in addition to heat resistance. The PYRAN® Platinum F produces fire protection for up to 90 minutes in windows and up to 3 hours in doors.
Features
- Weighs 2.6 lbs. psf
- Clearest glass-ceramic on today’s market
- Clear and wireless
- Attains positive pressure test standard UL 10C
- Impact rating: ANSI Z97.1 (Class A) and CPSC 16CFR1201 (Cat. I and II)
- Manufactured without hazardous elements antimony and arsenic
- Fire-rating not affected by light sandblasting or surface-applied opacity film
- Can be used monolithically, or in the construction of insulated glass units
Resources
Applications
Doors
Windows
Other hazardous locations
